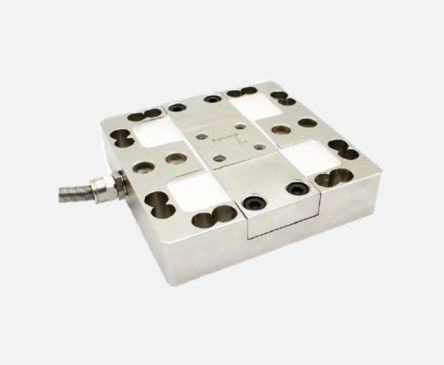

F3F 3軸測力感應器
電子型錄下載
F3F_DM.pdf| Rated load | 100、200、500、1000、2000、5000 N |
|---|---|
| Rated output | 1.0± mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.3%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.5%F.S. |
| Creep(30min) | ±0.5%F.S. / |
| Temp.effect on Output | 0.05%F.S. / 10℃ |
| Temp.effect on Zero | 0.05%F.S. / 10℃ |
| Response frequency | 10kHz |
| Insulation resistance | ≥5000MΩ / 100VDC |
| Impedance | 700Ω |
| Operating temp range | -20～75℃ |
| Excitasion voltage | 5～15V |
| Safe overload | 150%F.S. |
| Maximum overload | 300%F.S. |
| Cable specifications | Φ6x4m |
