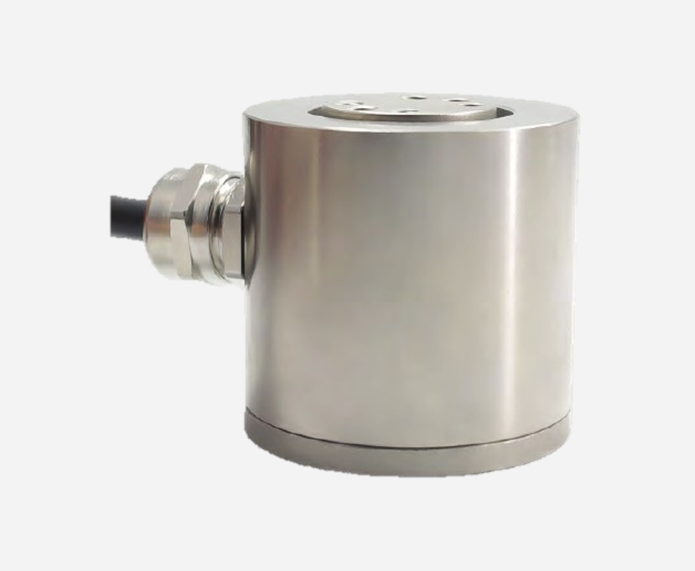

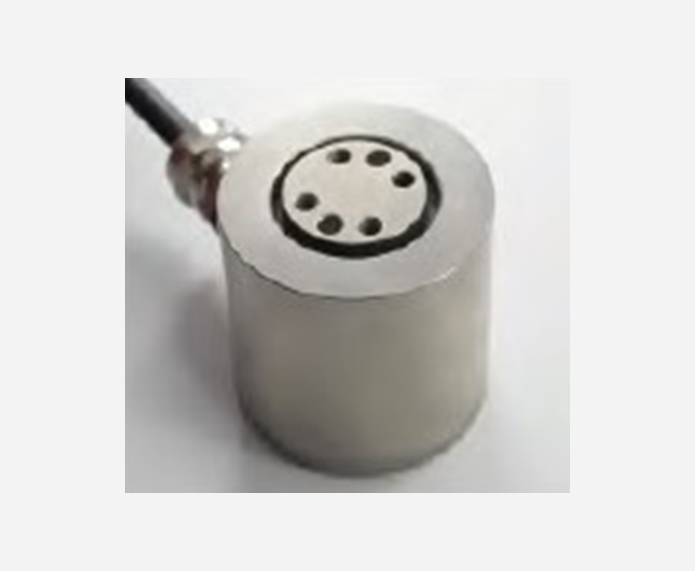

F2F 3軸測力感應器
電子型錄下載
F2F_DM.pdf| Rated load | 5、10、20、50、100 kg |
|---|---|
| Rated output | 1.0± 10%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 1.0%F.S. |
| Hysteresis | 1.0%F.S. |
| Repeatability | 1.0%F.S. |
| Creep(30min) | ±0.1%F.S. / |
| Temp.effect on Output | 0.05%F.S. / 10℃ |
| Temp.effect on Zero | 0.05%F.S. / 10℃ |
| Response frequency | 10kHz |
| Insulation resistance | ≥5000MΩ / 100VDC |
| Impedance | 700Ω |
| Operating temp range | -20～80℃ |
| Excitasion voltage | 5～10V |
| Safe overload | 120%F.S. |
| Maximum overload | 200%F.S. |
| Cable specifications | Φ6x3m |
