顧客滿意、創造利潤、永續服務 Accu Balances Corp., is a professional manufacturer and exporter based in Taiwan since 1984.

5. ARI741

  • 5. ARI741
5. ARI741
5. ARI741
特色：
  1. 專用不銹鋼材質
  2. 動態響應頻率高
  3. 適用於汽車壓裝、自動化組裝、3C產品測試、新能源產品組裝、醫療檢測、機器人領域、模具組裝及其它工業測試、測量及控制系統

電子型錄下載

ARI741(DM).pdf

Rated load 50、100、200、300、500、1000 kg / 2、5 t
Rated Output 1.0~2.0 ± 0.1 mV/V
Zero Balance 0.2% F.S.
Non-linearity ±0.1% F.S.
Hysteresis ±0.1% F.S.
Creep(30min.) ±0.1% F.S.
Temp.effect on output 0.05%F.S. / 10℃
Temp.effect on zero 0.05%F.S. / 10℃
Impedance 700±3 Ω
Insulation resistance ≥2000MΩ
Excitasion voltage 5～12V
Operating temp range -20～+70℃
Safe overload 120%F.S.
Maximum overload 200%F.S.
Cable specifications φ3x2000mm

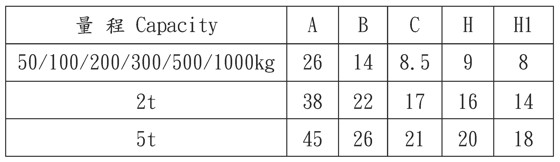

proimages/Load_Cell/ARI741尺寸.jpgproimages/Load_Cell/ARI741(CAP).jpg
