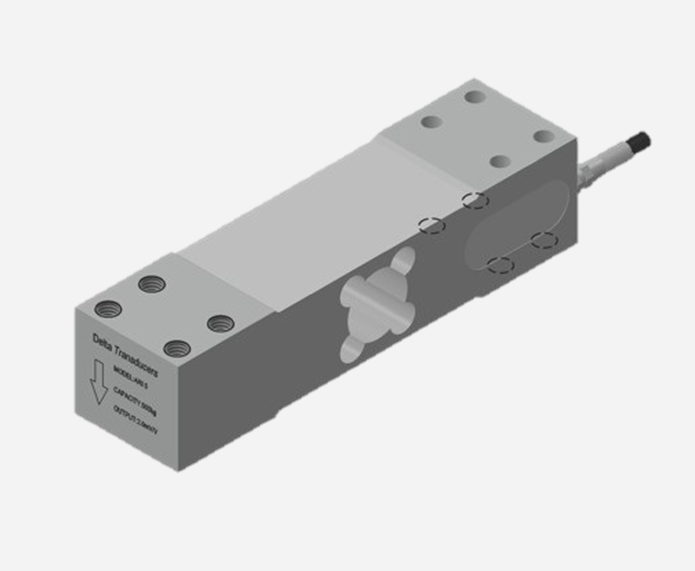

7. 鋁合金單點式 ARI5
電子型錄下載
ARI5(DM).pdf| Rated capacities | 100、200、300、500、800 kg |
|---|---|
| Rated output | 2.0mV/V±5% |
| Zero balance | ±0.0200mV/V |
| Non-linearity | 0.02%F.S |
| Hysteresis | 0.02%F.S |
| Repeatabilityr | 0.02%F.S |
| Creep(30min) | 0.02%F.S |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Temperature effect on output | 0.002F.S./℃ |
| Temperature effect on zero | 0.003F.S./℃ |
| Input resistance | 410±15Ω |
| Output resistance | 350±5Ω |
| Insulation resistance | ≥5000MΩ/(50VDC) |
| Operating Temp. Range | -20℃～60℃ |
| Recommended excitation | 5~12 VDC |
| Construction | Aluminium Alloy |
| Cable Length | Φ5x2m |
