ARI8-201D動態扭矩

  • ARI8-201D動態扭矩
ARI8-201D動態扭矩
ARI8-201D動態扭矩
特色：
  1. 抗干擾性強
  2. 精度高穩定性好
  3. 輸出信號數字化功能
  4. 體積小，重量輕，易於安裝
  5. 可高轉速長時間運轉

電子型錄下載

ARI8-201D_(DM)0506.pdf

Rated load 0.1~100、200~500 N.m
Speed Signal 0~4000rpm
Speed Capacity pulse / turn、mA、V
Zero balance ±1%F.S.
Non-linearity 0.5%F.S.
Hysteresis 0.5%F.S.
Repeatability 0.2%F.S.
Creep(30min) 0.03%F.S.
Temp.effect on Output 0.03%F.S. / 10℃
Temp.effect on Zero 0.1%F.S. / 10℃
Response frequency 10kHz
Load resistance ≥5000M&Omega / 100VDC
Working voltage 5~15V
Work environment -10～60℃
Safe overload 150%
Maximum overload 200%
Cable specifications Φ5x3m

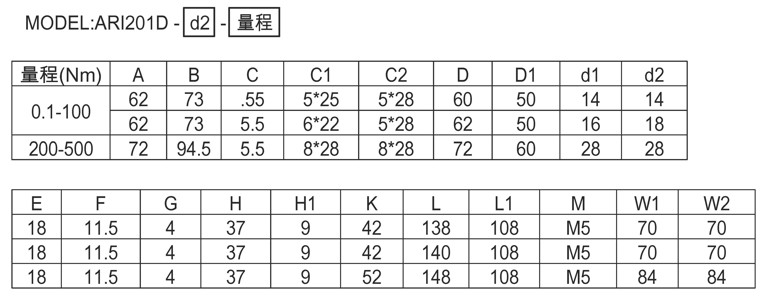

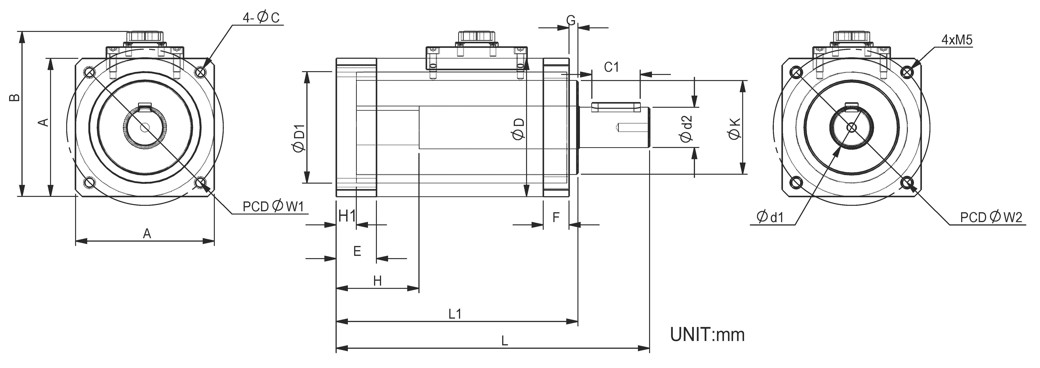

proimages/Load_Cell/ARI8-201D_(尺寸)0506.jpgproimages/Load_Cell/ARI8-201D(CAP).jpg
