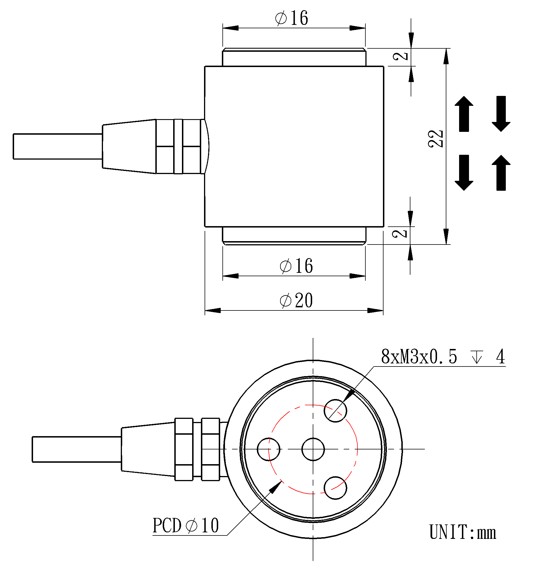

8. ARI671
電子型錄下載
ARI671(DM).pdf| Rated load | 50、100、200、300、500、1000、2000 N |
|---|---|
| Rated output | 2.0± 10%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Creep (30min.) | 0.1%F.S. |
| Temp.effect on output | 0.1%F.S. / 10℃ |
| Temp.effect on zero | 0.1%F.S. / 10℃ |
| Impedance | 350/7000Ω |
| Insulation resistance | ≥5000MΩ / 100VDC |
| Excitasion voltage | 10~15V |
| Operating temp range | -20～80℃ |
| Safe overload | 120%F.S. |
| Maximum overload | 150%F.S. |
| Cable specifications | φ3x2m |
