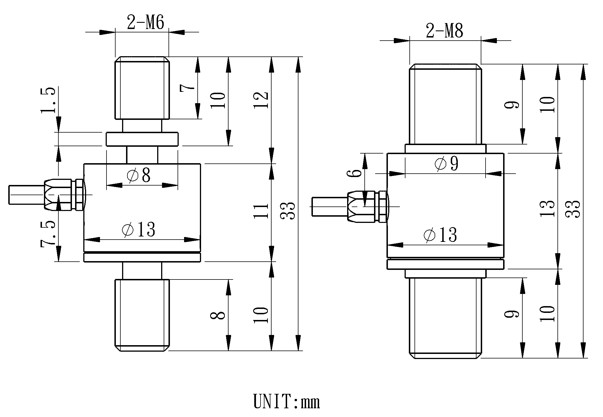

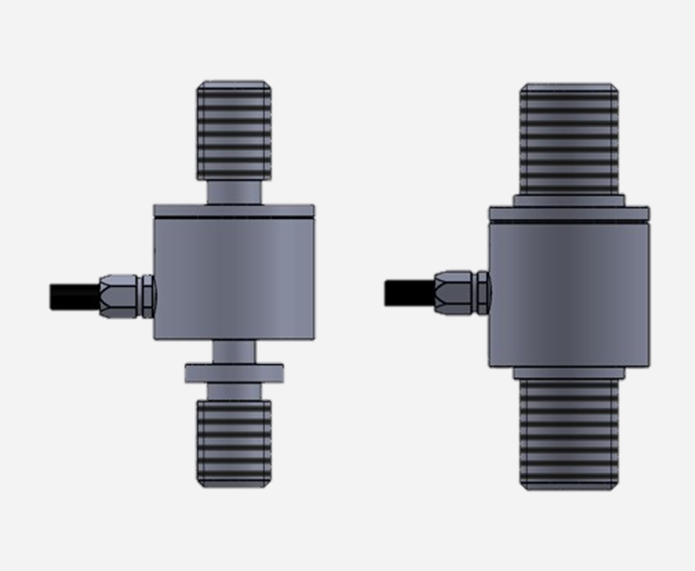

2. ARI640A
電子型錄下載

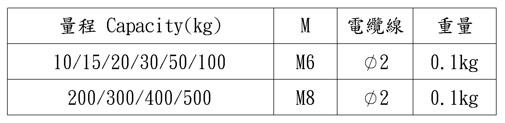

ARI640A(DM).pdf| Rated load | 10、15、20、30、50、100、200、300、400、500 kg |
|---|---|
| Rated output | 1.0±20% mV/V |
| Zero balance | ±5 R.O. |
| Non-linearity | 1% R.O. |
| Hysteresis | 0.2% R.O. |
| Repeatability | 0.2% R.O. |
| Creep (30min.) | 0.1% R.O. |
| Temp.effect on output | 0.2% R.O. / 10℃ |
| Temp.effect on zero | 0.2% R.O. / 10℃ |
| Impedance | 350 / 500 / 1000 Ω |
| Insulation resistance | ≥5000MΩ / 100VDC |
| Excitasion voltage | 5~10V |
| Operating temp range | -20～80℃ |
| Safe overload | 120%F.S. |
| Maximum overload | 200%F.S. |
| Cable specifications | φ2x2m |
