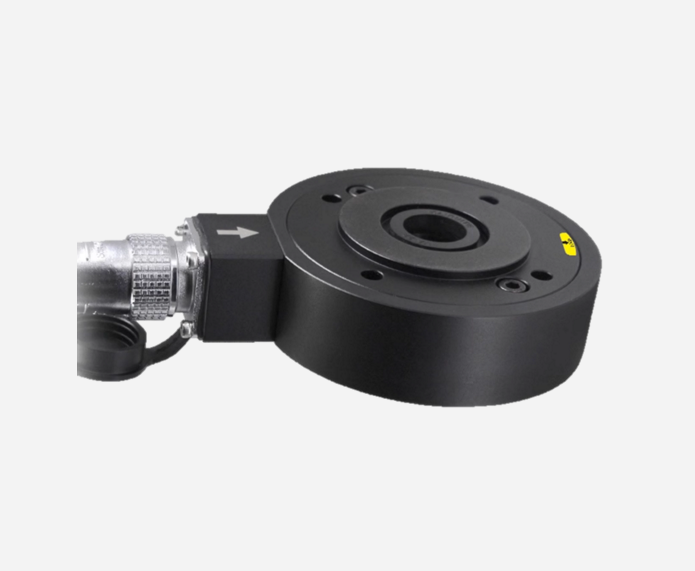

張力感應器 ARITN-105
電子型錄下載
ARITN-105(DM).pdf| Specifications | Technique |
|---|---|
| Rated load | 1，2，5~10，10~14t |
| Rated output | 1.5±0.05%mV/V |
| Zero balance | ±1% F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Creep error(30min.) | 0.05% F.S. |
| Temp. effect on span | 0.05% F.S. / 10℃ |
| Temp. effect on zero | 0.05% F.S. / 10℃ |
| Material | Alloy steel |
| Insulation resistance | ≧5000MΩ / 100VDC |
| Excitation voltage | 10~15V |
| Compensated temp. range | -20~80℃ |
| Safe overload | 150% F.S. |
| Ultimate overload | 300% F.S. |
| Cable | Ø5X3m |
