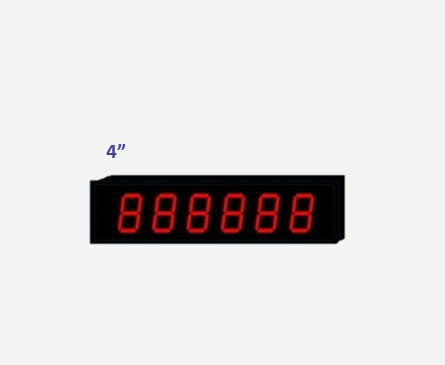

AC-9130D _ REMOTE DISPLAY
Features:
  1. With high-brightness LED, the font is clear and the distance is long.
  2. Receive display in RS-485 transmission mode.
  3. Adopt Modbus RTU Mode communication protocol.
  4. Remote display is an economical and durable remote display for your scale application.
  5. The unit is totally encapsulated in epoxy to aid in vibration control and to seal out moisture and dust.
  6. Remote display are easy to read at a distance, for applications such as vehicle scales, platform scales, crane scales, and more.
  7. Remote display offer serious environmental protection, making them ready for long-term outdoor use.

Additional files

AC-9130D.pdf


Display

Digit Size 4″ (10m)
Contents 6 active digits
Power Requirements AC100~240V
Input Interfaces RS-485
Address 1 ~ FF(16Hex)
Baud rate 2400/4800/9600/19200
Frame N.8.2, E.8.1, O.8.1, N.8.1
Protocol Modbus RTU Mode

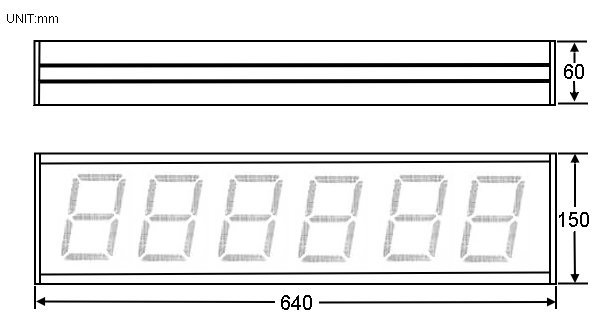

Enclosure 640(W) x 150(H) x 60(D) mm
