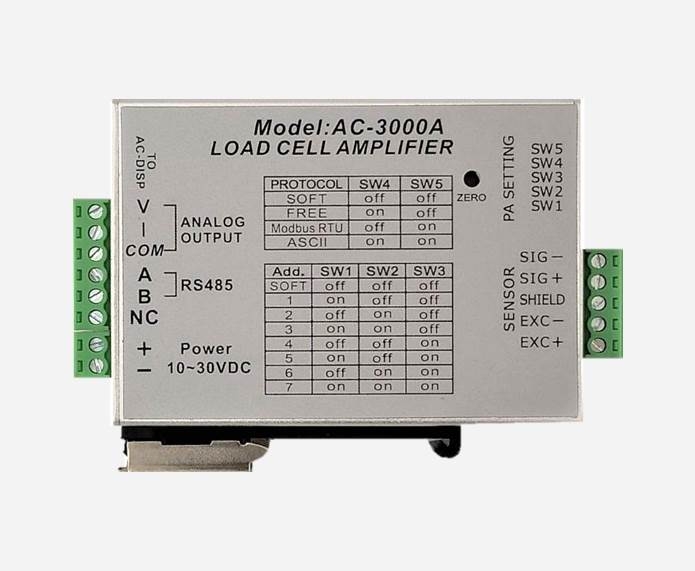

1. 高速4.8kHz類比放大器含通訊模組
電子型錄下載
AC-3000A-ADM.pdf| Power Supply | DC10~30V |
|---|---|
| Signal Input Range | 0.1~6mV/V |
| Excitation Voltage | 5VDC±2%,100mA |
| A/D Resolution | 24bit |
| A/D Conversion Rate | 10.40.80.120.200.400.600.800.1200.1600.2400.4800Time/Sec |
| D/A Resolution | 16bit |
| D/A Conversion Rate | 10.40.80.120.200.400.600.800.1200.1600.2400.4800Hz |

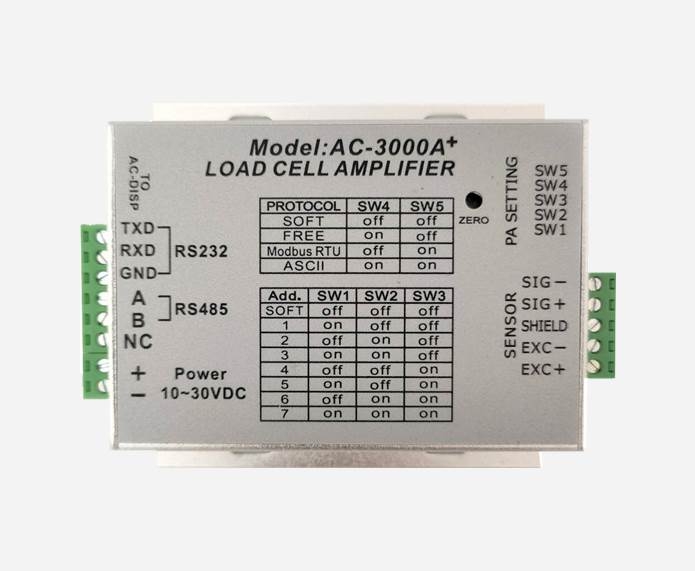

| Interface | AC-3000A：RS485+Analog Output (±10V,±5V,4~20mA….) AC-3100A+ ：RS485+RS232 |
| Baud Rate | 1200.2400.4800.9600.19200.38400.57600.115200.230400. 460800.921600bps |
| Protocol | Modbus RTU/ASCII/FREE |
| Number of Load Cell | Up to 6 350Ω Load Cells |

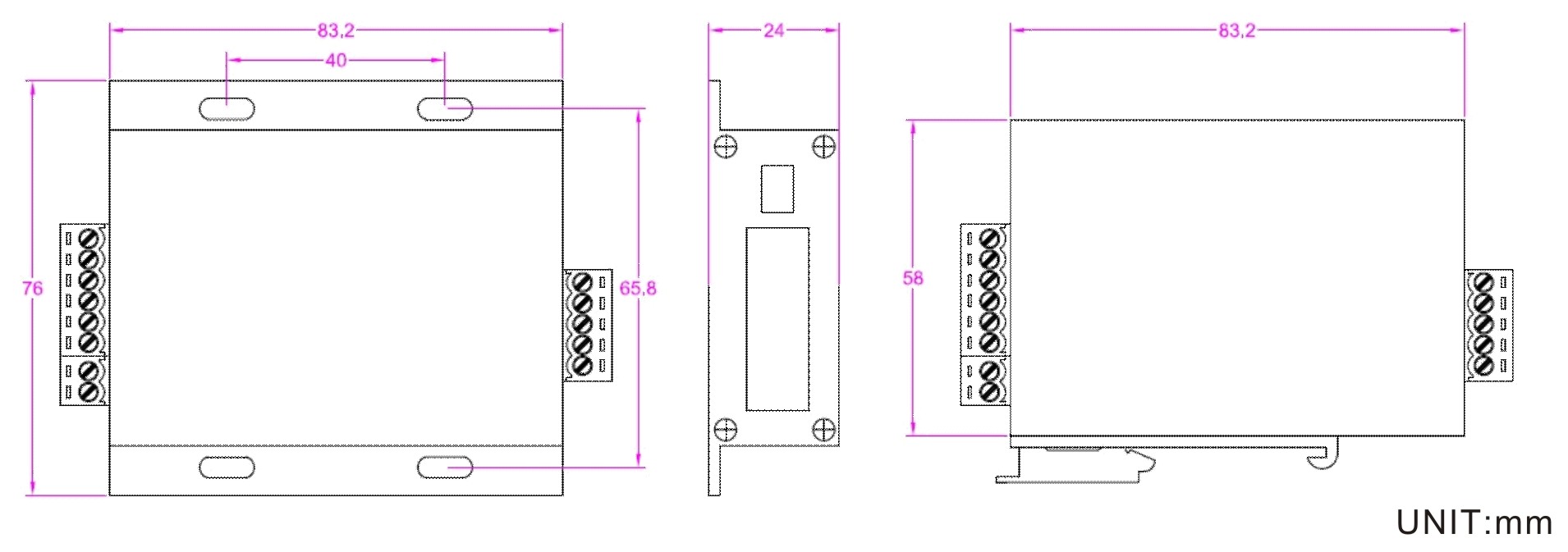

| Dimensions | 82 x 76 x 24mm |
| Temperature Operating | -30~60℃ |
| Maximum Resolution | 1/100000 |
| Protection | IP65 |
