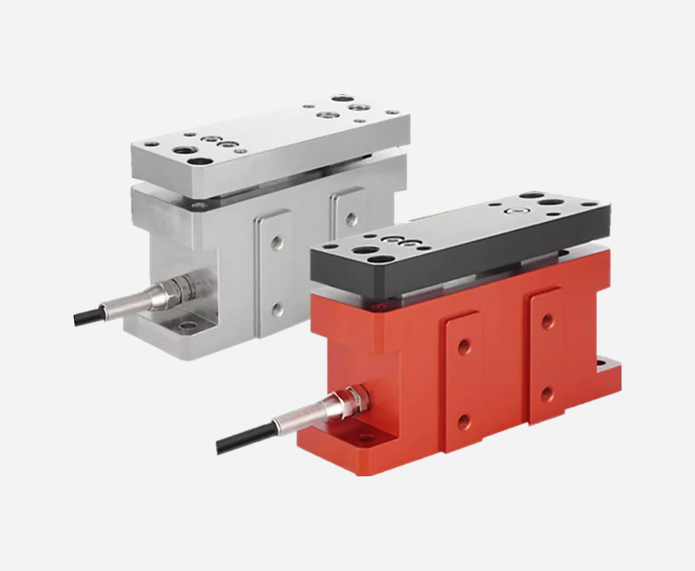

張力感應器 ARILX
電子型錄下載
ARILX(DM).pdf| Specifications | Technique |
|---|---|
| Rated load | 5，10，20，30，50，100，200，500 kg |
| Rated output | 1.0±1%mV/V |
| Zero balance | ±0.1% F.S. |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Creep error(30min.) | 0.05%F.S. |
| Temp. effect on span | 0.05% F.S. / 10℃ |
| Temp. effect on zero | 0.05% F.S. / 10℃ |
| Material | Alloy steel / Aluminum Alloy |
| Insulation resistance | ≧5000MΩ / 100VDC |
| Excitation voltage | 5~10V |
| Compensated temp. range | -20~60℃ |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Cable | Ø5X3m |
