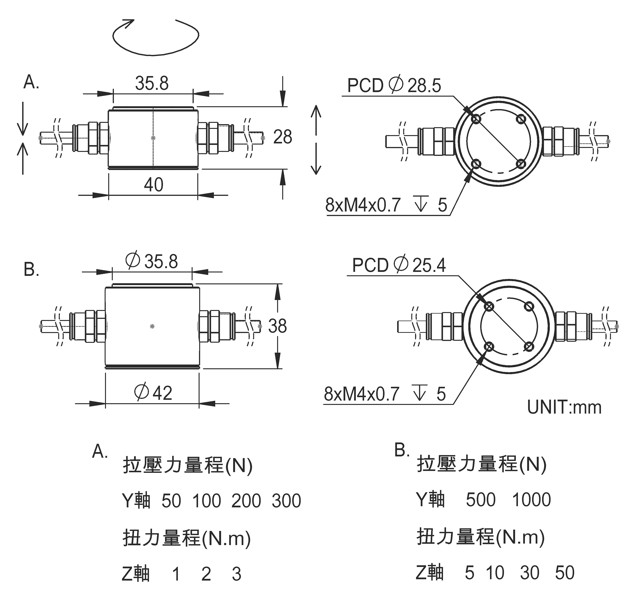

5. ARI8-105 靜態扭矩
電子型錄下載
ARI8-105_(DM).pdf| Rated load | 50，100，200，300，500，1000 N |
|---|---|
| Rated output | 2.0±10% mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | ±0.05%F.S. / |
| Temp.effect on Output | 0.5%F.S. / 10℃ |
| Temp.effect on Zero | 0.5%F.S. / 10℃ |
| Insulation resistance | ≥5000MΩ / 100VDC |
| Impedance | 350Ω |
| Operating temp range | -20～80℃ |
| Excitasion voltage | 5～10V |
| Safe overload | 120%F.S. |
| Maximum overload | 200%F.S. |
| Cable specifications | Φ3x2m |
